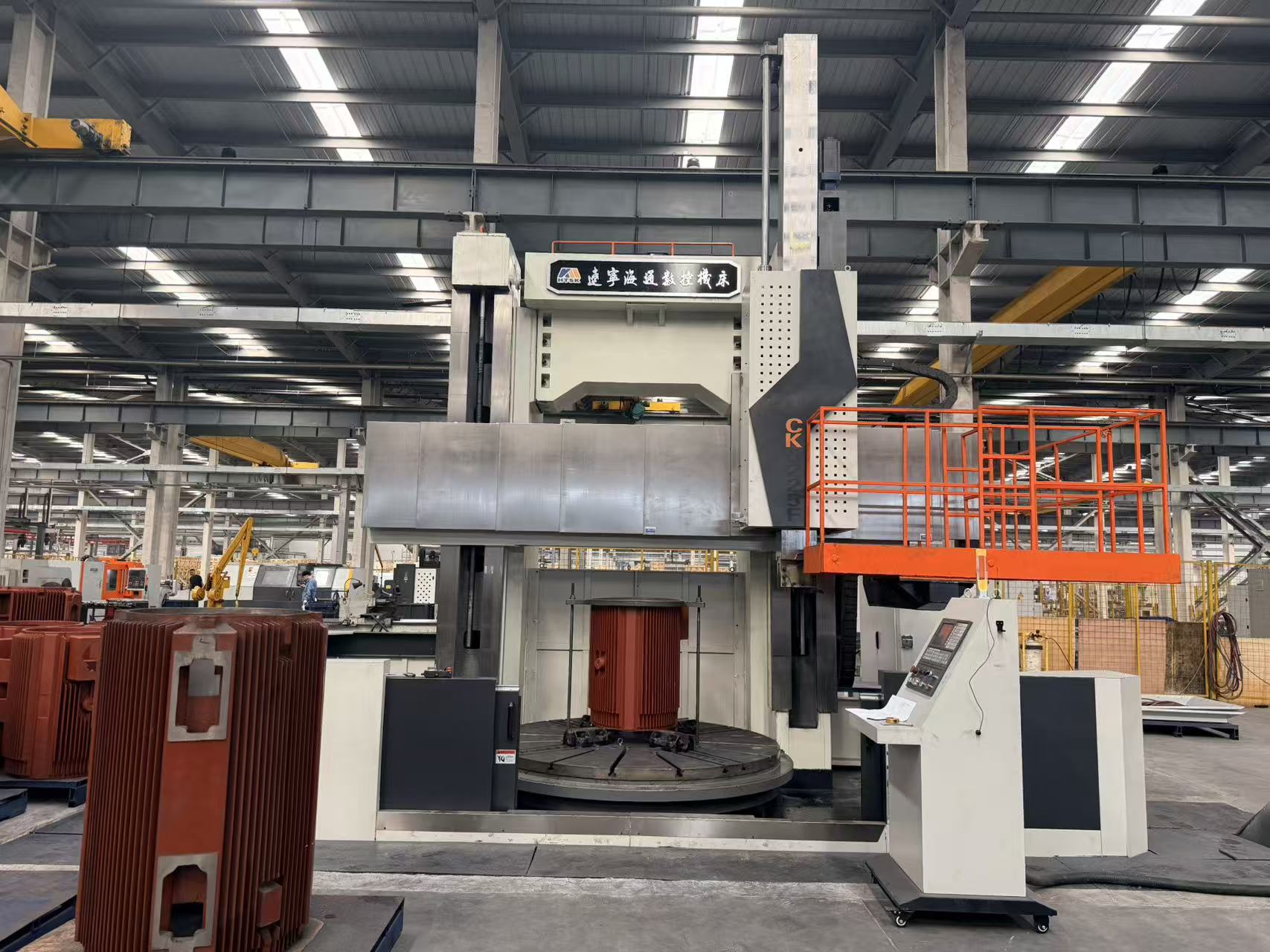

The workpiece height is 2500mm, and the weight of the workpiece is 16 tons; the diameter of the worktable is 2250mm, and the two-speed stepless speed regulation of the vertical axis is provided, driven by an AC servo main motor; the worktable adopts static pressure guide rails and a short spindle structure; the right single tool rest is CNC, with a forged steel square slide rest, the cross-section of the slide rest is 280X280mm, and the vertical travel of the slide rest is 2000mm; it is equipped with the 980TDI numerical control system, which adopts semi-closed-loop control. There is a measurement table on the right side.
The overall configuration includes a simple semi-enclosed protective cover, a chain plate type chip removal machine, and a turning tool cooling system.
By using computer-aided design and optimization design methods, in accordance with the current national precision standards and the internal standards of this enterprise, and by integrating advanced functional components from both domestic and foreign sources, this product features high dynamic and static stiffness of the machine tool, safe and reliable operation in all movements, long service life, and high processing efficiency, embodying the characteristics of a high-tech electromechanical integrated product.
